Physical Audio 发布 Dynamic Plate Reverb

Dynamic Plate Reverb 是一个混响效果插件，
它使用薄板振动的物理模型来重现板式混响的经典声音

Innovative and creative plate reverb​

Dynamic Plate Reverb uses a physical model of a thin metal plate to recreate the classic sound of plate reverberation.
Our innovative algorithm gives creative control of the plate setup, allowing you to tailor the resonance to your material.
Five different plate materials, a pre-amp drive, and a powerful 8-band mode equalizer,
give a huge range of tonal variation that can be applied to vocals, drums or instruments.​

创新创意板式混响​

Dynamic Plate Reverb 使用薄金属板的物理模型来重现板式混响的经典声音。
我们的创新算法可以创造性地控制板设置，让您可以根据材料定制共振。
五种不同的板材、前置放大器驱动器和强大的 8 频段模式均衡器
提供了广泛的音调变化范围，可应用于人声、鼓或乐器。

Pure physical modelling​

Dynamic Plate Reverb does not use impulse responses or delay networks.
Instead we start from a mathematical description, the Kirchhoff plate equation.
This gives the displacement in terms of size, thickness, and tension, as well as the properties of the chosen material.
Using this description we calculate the modes of vibration for the system, applying our unique optimisation engine.
Further details of our original and innovative algorithm design can be found in this technical paper
which we published at the International Congress on Acoustics in 2016.​

纯物理建模​

Dynamic Plate Reverb 不使用脉冲响应或延迟网络。
相反，我们从数学描述开始，即基尔霍夫板方程。
这给出了尺寸、厚度和张力方面的位移，以及所选材料的特性。
使用这个描述，我们计算系统的振动模式，应用我们独特的优化引擎。
有关我们原创和创新算法设计的更多详细信息，
请参阅我们在 2016 年国际声学大会上发表的这篇技术论文。

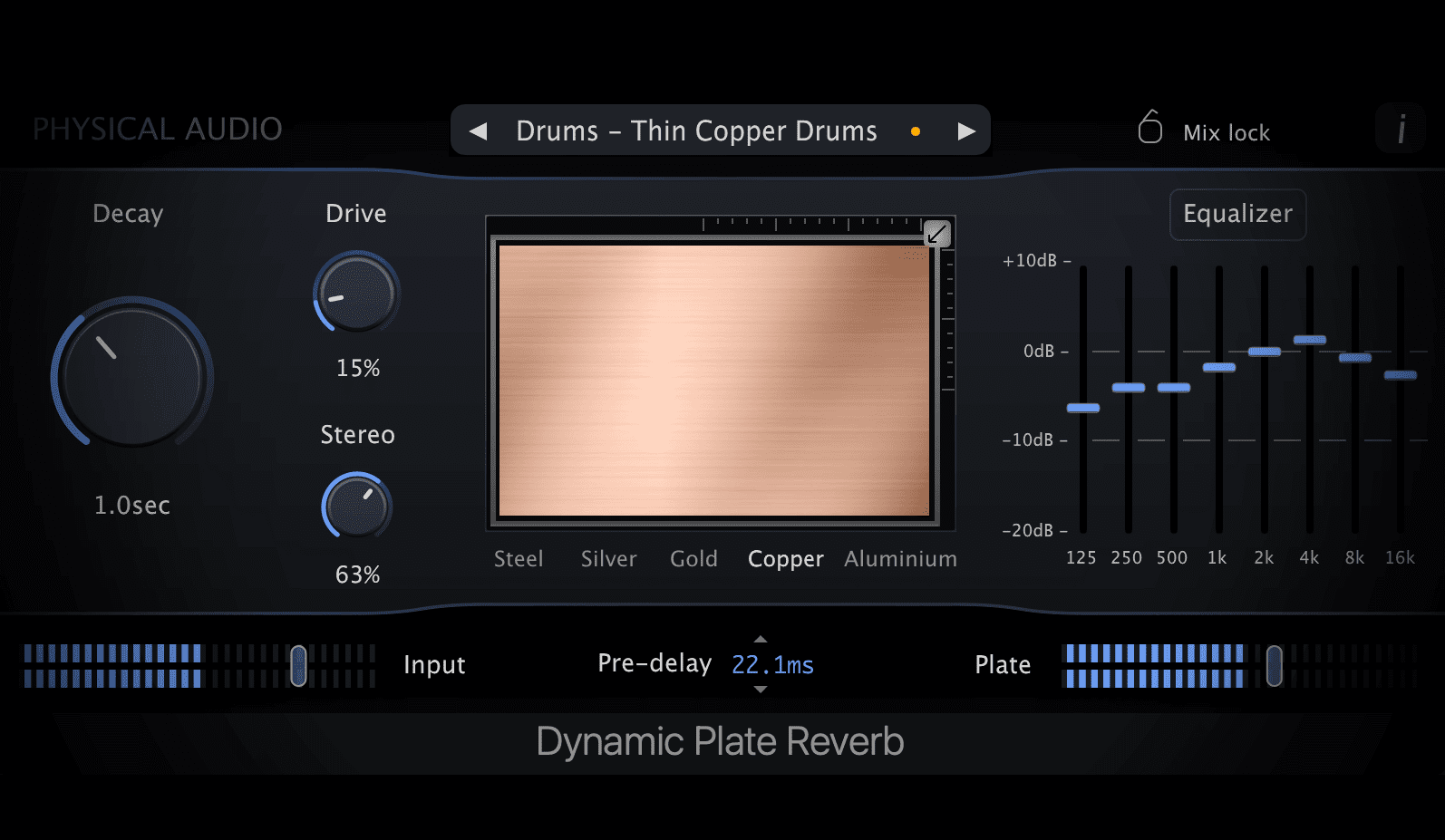

Customisable plate setup​

The physical model allows real-time control of the dimensions of the plate, from 3m x 2m down to 1.5m x 1m.
This, along with five different plate materials, allows you to tailor the resonance to your input material.
The 8-band equaliser adjusts the weights of the modes across the frequency range for total control over the reverberant sound.
The modelled pre-amp drive section can be used to add warm or overdrive to the signal that is fed into the plate.​

可定制的板设置​

物理模型允许实时控制板的尺寸，从 3m x 2m 到 1.5mx 1m。
这与五种不同的板材料一起，允许您根据输入材料定制共振。
8 频段均衡器在整个频率范围内调整模式的权重，以全面控制混响声音。
建模的前置放大器驱动部分可用于为馈入板的信号添加温暖或过载。

Minimal memory and CPU usage. Maximum quality.​

Dynamic Plate Reverb uses less than 10% of a CPU core on a modern processor,
using our Physical Audio Optimisation Engine.
This gives maximum sound quality with minimum CPU usage.
Memory and disk space are also tiny, with the plugins being less than 20MB in size.
Dynamic Plate Reverb operates at samples rates from 44.1kHz to 96kHz.​

小的内存和 CPU 使用率以及高质量。​

使用我们的物理音频优化引擎，
Dynamic Plate Reverb 在现代处理器上使用不到 10% 的 CPU 内核。
这可以以最少的 CPU 使用率提供最高的音质。
内存和磁盘空间也很小，插件的大小不到 20MB。
Dynamic Plate Reverb 以 44.1kHz 至 96kHz 的采样率运行。

首发价：76美元（原价：109美元）
官网地址：https://physicalaudio.co.uk/products/dynamic-plate-reverb/​
