Cherry Audio 发布基于四个正弦波振荡器的原创合成器 Sines

建模经典合成器的复刻小天王 Cherry Audio 又来啦!但是这次破天荒的发布了一款原创合成器!
Sines 使用 4 个正弦波振荡器来创造独特的合成器思路,如果我不告诉你这并非复刻,估计你还在琢磨原始型号中……



Dangerous Curves Ahead
Sines is a sensational and innovative original polyphonic synthesizer.
Employing four sine-wave oscillators, Sines utilizes diverse waveshaping methods to bend these basic waves into infinitely variable and complex shapes.
When combined with its wide-ranging modulation capabilities and effects, users can create a diverse array of unique timbres ranging from the sublime to sizzling.​

前方有危险的曲线
Sines 是一款轰动一时的创新原创复音合成器。
利用四个正弦波振荡器,Sines 使用不同的波形整形方法将这些基础波形弯曲成无限可变和复杂的形状。
当与其全面的调制能力和效果相结合时,用户可以创建从优雅到粗暴的各种独特音色。


The Power of Four

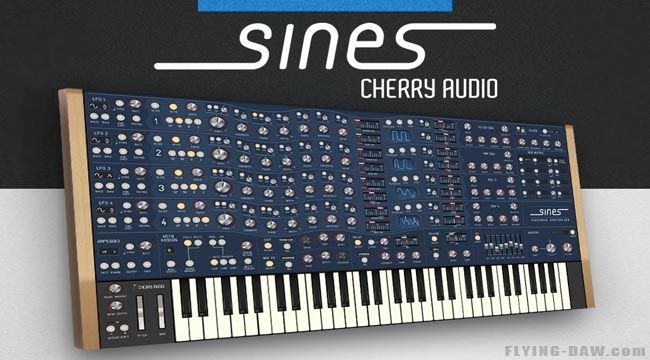

The state-of-the-art Sines interface provides immediate hands-on access to all sound parameters.
It comes alive with illuminated indicators, color, and mini oscilloscopes, providing instant visual feedback.
The primary sound design controls are grouped horizontally in bands emphasizing its "four of everything" nature:
four LFOs, four oscillators, and four envelope generators.​

四的力量
先进的 Sines 界面提供了对所有声音参数的实时操作访问。
它通过照明指示器、颜色和微型示波器变得栩栩如生,提供实时视觉反馈。
主要的声音设计控制依据不同电平分组在频率中,强调其 “四个一切” 的性质:
四个LFO,四个振荡器,和四个包络发生器。
At the core of each section are the unique sine-wave oscillator waveshaping controls:
feedback, phase, width, shape, wavefold, and drive, along with a sub (octave-down) oscillator and a super (octave-up) oscillator.
Phase modulation and ratio dials allow the oscillators to be configured in a modulator/carrier arrangement for four-op DX/FM-style synthesis.​

每个部分的核心是独特的正弦波振荡器波形整形控制:
反馈、相位、宽度、形状、波幅和驱动,以及一个超低(低八度)振荡器和一个超高(高八度)振荡器。
相位调制和比例参数可以将振荡器配置为调制振荡器/载波振荡器排列,以实现四路 DX/FM 调频合成。


But these dangerous curves are just the beginning. Sines features Cherry Audio's most extensive multimode filter to date,
four LFOs with 14 wave shapes, four envelope generators, an arpeggio,
a "best of" selection of Cherry Audio's finest acclaimed effects, a drift function, and an integrated eight-band graphic EQ.
Many controls include an adjacent mod source button,
and an outrageously comprehensive four-slot mod matrix provides numerous modulation options for nearly every Sines parameter.​

但这些危险的曲线只是个开始。Sines 配备了 Cherry Audio 当下全面的多模式滤波器、
具有 14 个波形的四个LFO、四个包络发生器、一个琶音、
一个精选 Cherry Audio 广受好评的效果器、偏移功能和一个集成的八段图示均衡器。
许多控制包括一个相邻的调制源按钮,
以及一个极其全面的四插槽调制矩阵,为几乎每个正弦参数提供了多种调制选项。


Three Ways to Play
Mastering Sines may seem like rocket science, but we've made it easy to get started.
Sines includes over 700 presets, both practical and cutting-edge, as well as a comprehensive user guide that's fun to read.
Moreover, the aural and visual immediacy of Sines encourages experimentation and provides a deeper understanding of how the elements interact.
In little time, users can design individualized sounds ranging from glorious evolving pads, bright FM plucks, distinctive leads, crisp percussive tones, and much more.​

三种合成方式
掌握正弦波可能看起来像研究火箭发射,但我们已经让它很容易开始。
Sines 包括700多个预置,既有实用的,也有超前的,以及读起来很有趣的全面用户指南。
此外,Sines 直接的听觉和视觉反馈鼓励实验,并提供了对元素如何相互作用的更深层次的理解。
在很短的时间内,用户可以设计个性化的声音,从辉煌的铺底,明亮的调频拨奏,独特的领奏,清脆的打击乐音色等等。
Sines lends itself well to three more direct approaches to sound design:
standard subtractive synthesis, where sine waves are wave-shaped into other familiar waveforms, then processed through an analog-style filter.
Alternately, an additive synthesis approach stacks sine waves at different pitches and amplitudes, like a supercharged Hammond tonewheel organ.
Finally, oscillators can modulate each other in multiple configurations, mimicking the classic DX-style FM carrier and modulator architecture with much less effort than original 80s instruments.​

Sines 很好地为自己提供了三种更直接的声音设计方法:
标准减法合成,即正弦波被波形成形为其他熟悉的波形,然后通过模拟风格的滤波器进行处理。
或者,加法合成方法将不同音调和振幅的正弦波堆叠在一起,就像一个增压的哈蒙德音轮风琴。
最后,振荡器可以在多种配置中相互调制,模仿经典的 DX 风格的调频载波和调制振荡器架构,比原来的 80 年代合成器容易得多。


FEATURES
• Four independent sine waveform oscillators, with waveshaping controls to bend the basic waves into other standard waves (sawtooth, square, pulse, triangle) and more complex and novel shapes
• Six waveshaper controls: feedback, phase, width, shape, wavefold, and drive, each with modulation source assignments available
• Sub (octave-down sine wave) oscillator and a super oscillator (octave-up sine wave) for each oscillator
• Oscillator utility function to copy/paste, randomize, or reset any oscillator settings
• Glide (portamento) and keyboard (pitch) controls independently enabled for each oscillator
• Up to 16-voice polyphony
• Polyphonic (two modes), chord memory, single voice, and unison with unison detune
• Resonant multimode filter with 6, 12, 18 or 24 dB/oct lowpass, highpass, bandpass, or notch modes
• Four tempo-syncable LFOs with 14 waveforms: sine, triangle, sawtooth, sawtooth, exponential sawtooth, logarithmic sawtooth, three-step sawtooth, four-step ramp, exponential ramp, logarithmic ramp, three-step ramp, and four-step square random
• ADSR filter and amplifier envelope generators with velocity controls
• Two additional auxiliary envelope generators usable as mod sources
• Four-slot mod matrix allows modulation of nearly every parameter in Sines
• Arpeggiator with tempo sync
• Four fully modulatable effects sections: multiple distortion and sample-crushing options; mod FX with phaser, chorus, flanger, or rotary speaker; delay with stereo, ping-pong, or tape delay modes; five reverb effects, including our acclaimed "Galactic" algorithm
• Drift controls that optionally apply variation to oscillators and filter frequencies to add authentic analog character
• Eight-band graphic EQ
• Channel pressure and polyphonic aftertouch as a polyphonic modulation source
• Support for MIDI Polyphonic Expression (MPE) -- Pitch, Channel Pressure, and Timbre -- making Sines capable of more organic and expressive performances when using MPE-compatible control​

产品特征
• 四个独立的正弦波振荡器,具有波形整形控制,可将基础波形弯曲成其他标准波(锯齿波、方波、脉冲波、三角波)以及更复杂和新颖的形状。
• 六个波形整形器控制:反馈、相位、宽度、形状、波幅和驱动,每个都有调制源分配。
• 附带低音振荡器(低八度正弦波)和高音振荡器(高八度正弦波)。
• 振荡器实用功能,可复制/粘贴、随机化或重置任何振荡器设置。
• 为每个振荡器单独启用 Glide(滑音)和键盘(音高)控制。
• 多达 16 个声部的复音数。
• 复音(两种模式)、和弦记忆、单音和带同音模式的和声。
• 具有 6、12、18 或 24分贝/八度衰减的低通、高通、带通或陷波模式的谐振式多模式滤波器。
• 四个节拍合成 LFO,14 种波形:正弦波、三角波、锯齿波、锯齿波、指数锯齿波、对数锯齿波、三阶锯齿波、四阶斜波、指数斜波、对数斜波、三阶斜波和四阶随机方波。
• 带力度控制的 ADSR 滤波和放大器包络发生器。
• 另外两个可用作模拟信号源的辅助包络发生器。
• 四插槽调制矩阵允许调制正弦波中的几乎所有参数。
• 带节奏同步的琶形器。
• 四个完全可调整的效果部分:多种失真和采样粉碎;带相控、合唱、镶边或旋转扬声器的调制效果;带立体声、乒乓或磁带模式的延迟;五种混响效果,包括我们广受好评的 “Galaxy” 算法。
• 偏移控制,可选择将变化应用于振荡器和滤波器频率,以增加真实的模拟特性。
• 八段图示均衡器。
• 用于复音信号调制源的通道触后功能。
• 支持 MIDI 复音表达(MPE)标准 - 音高、通道压力和音色 - 使 Sines 在使用与 MPE 兼容的控制器时能够更具表现力

官方网站:
https://cherryaudio.com/products/sines
产品价格:
官网标价 59 美元,上货售价 39 美元,
中国区的用户请在总代理飞来音电脑音乐技术购买。​
